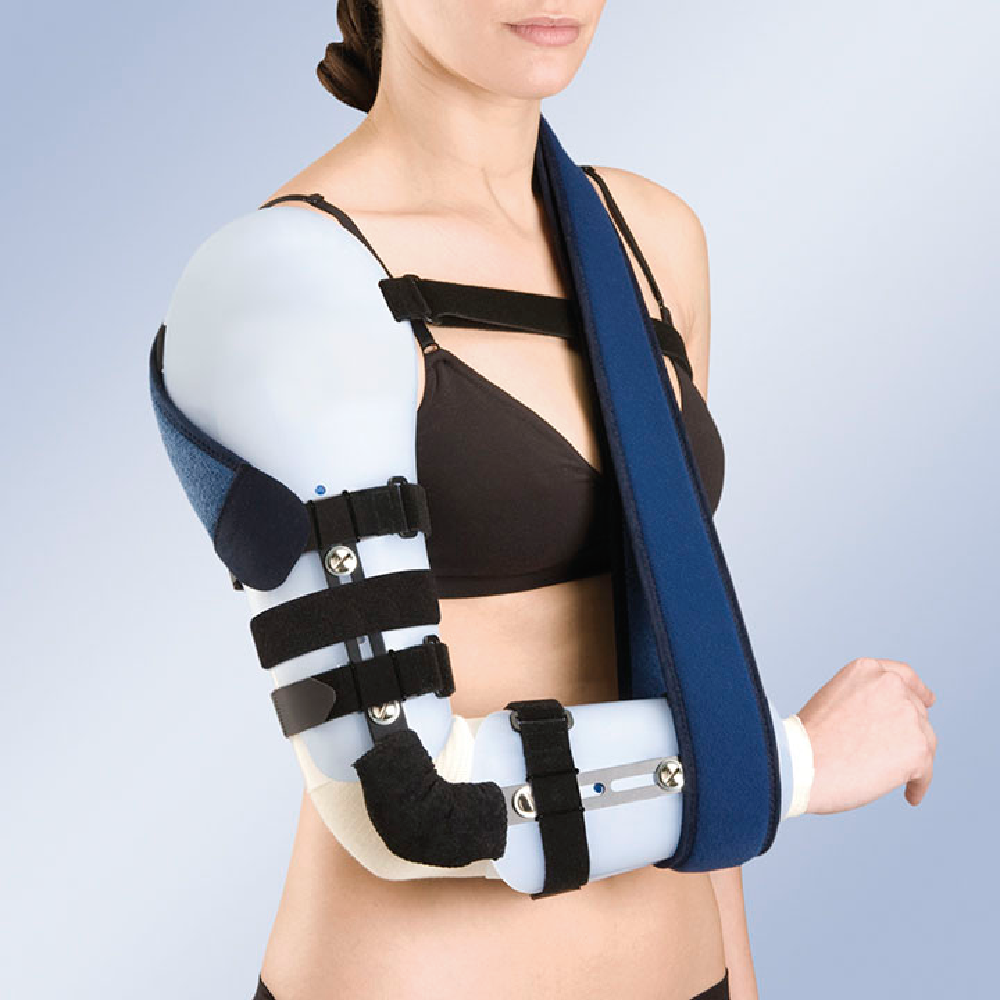

This articulated elbow brace is a modular upper limb orthosis designed for structured immobilization and controlled support of the humerus, forearm, and hand. Constructed from durable thermoplastic material with internal plastazote padding, it provides secure stabilization while ensuring patient comfort during recovery and rehabilitation.
The system includes a humerus brace, forearm brace, and integrated hand support, combined with an adjustable elbow articulation mechanism that allows controlled flexion and extension. The micro-hook fastening system and adjustable straps ensure a secure and customizable fit. The brace can also be trimmed and adapted for precise patient requirements, making it suitable for a wide range of upper limb conditions.
An additional shoulder strap enhances stability, while polyethylene linking tabs improve structural alignment and durability.
- Modular thermoplastic upper limb orthosis
- Includes humerus, forearm, and hand support
- Adjustable elbow joint with flexion–extension control
- Micro-hook fastening system for secure fixation
- Adjustable straps for customized fitting
- Can be trimmed for personalized adjustment
- Internal plastazote padding for comfort
- Lightweight yet rigid structural support
- Additional shoulder strap for enhanced stability
- Designed for right arm support
- Provides strong immobilization and alignment of upper limb
- Supports fracture recovery and post-surgical stabilization
- Helps reduce pain and prevents unwanted movement
- Enhances healing in humerus and elbow injuries
- Adjustable design improves patient comfort and compliance
- Allows controlled rehabilitation with adjustable joint movement
- Suitable for complex orthopedic recovery cases
| Specification | Details |
|---|---|
| Product Type | Articulated Upper Limb Orthosis |
| Material | Thermoplastic |
| Padding | Internal Plastazote Padding |
| Support Areas | Humerus, Forearm, Hand |
| Joint System | Adjustable Elbow Articulation |
| Fixation System | Micro-hook Straps |
| Additional Support | Shoulder Strap Included |
| Color | White |
| Side | Right Arm |

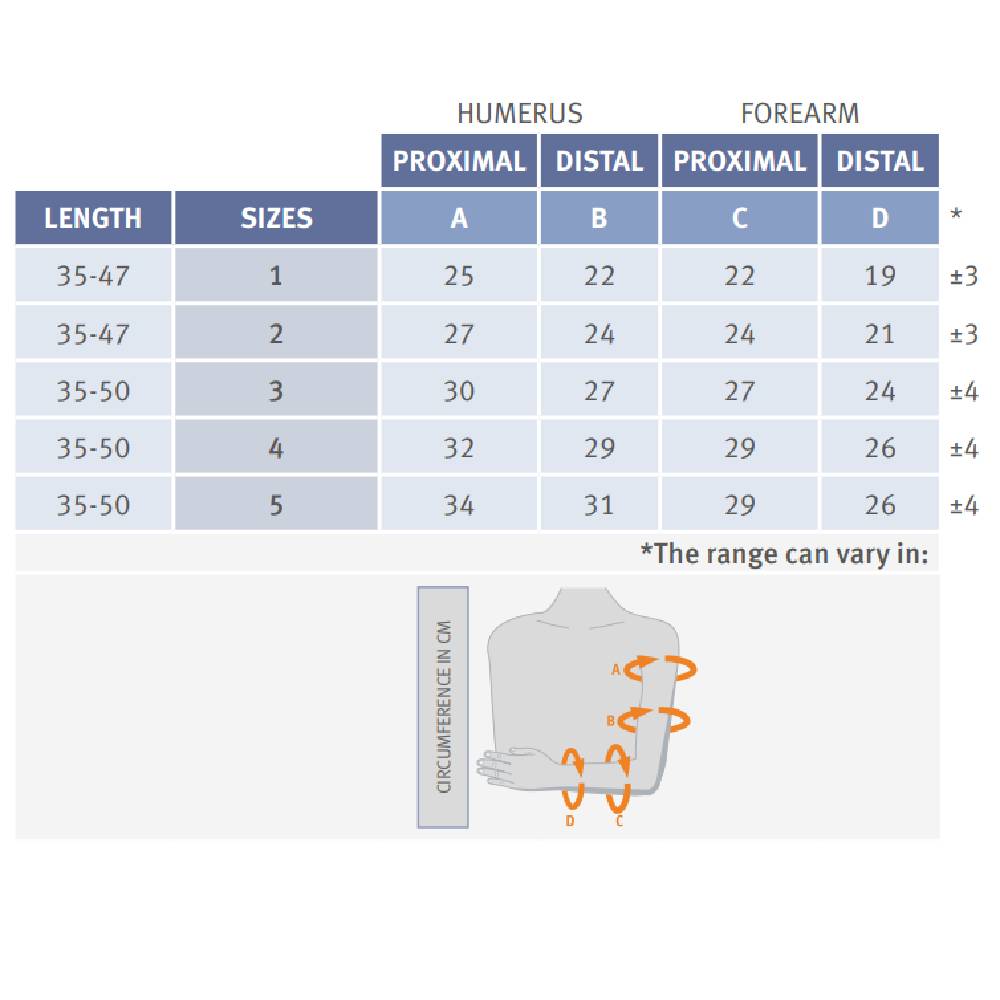

Size Guide
| Size | Length Range (cm) | A | B | C | D | Tolerance |
|---|---|---|---|---|---|---|
| 1 | 35–47 | 25 | 22 | 22 | 19 | ±3 |
| 2 | 35–47 | 27 | 24 | 24 | 21 | ±3 |
| 3 | 35–50 | 30 | 27 | 27 | 24 | ±4 |
| 4 | 35–50 | 32 | 29 | 29 | 26 | ±4 |
| 5 | 35–50 | 34 | 31 | 29 | 26 | ±4 |
